54 10 150 Removing and installing/replacing front floating headlining

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove GLASS TILT SUNROOF COVER

IMPORTANT: Make sure that grease on the rails does not come into contact with the floating headlining.

Open floating headlining (1) until screws (2) are still accessible.

Unfasten screws (2).

Tightening torque 54 10 03AZ .

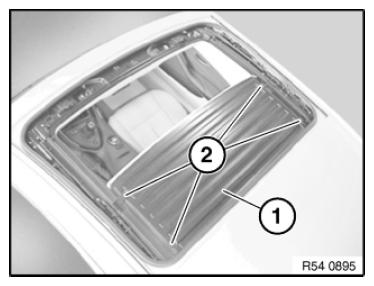

Fig 1: Identifying Floating Headlining And Screws

G10063815

Courtesy of BMW OF NORTH AMERICA, INC.

Slide floating headlining (1) uniformly forwards.

If necessary, raise slider (2) for floating headlining.

Move slider (2) back to the point where there is no longer any contact to the floating headlining.

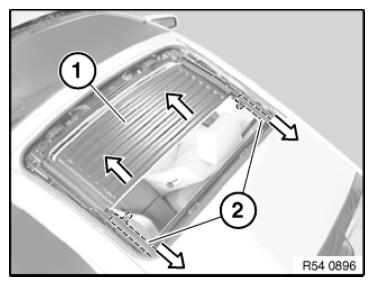

Fig 2: Raising Slider And Sliding Floating Headlining Forward

G10063816

Courtesy of BMW OF NORTH AMERICA, INC.

Remove floating headlining (1) as follows:

Press to the right in guide rail (2) of slider
Raise upward
Remove in direction of arrow.

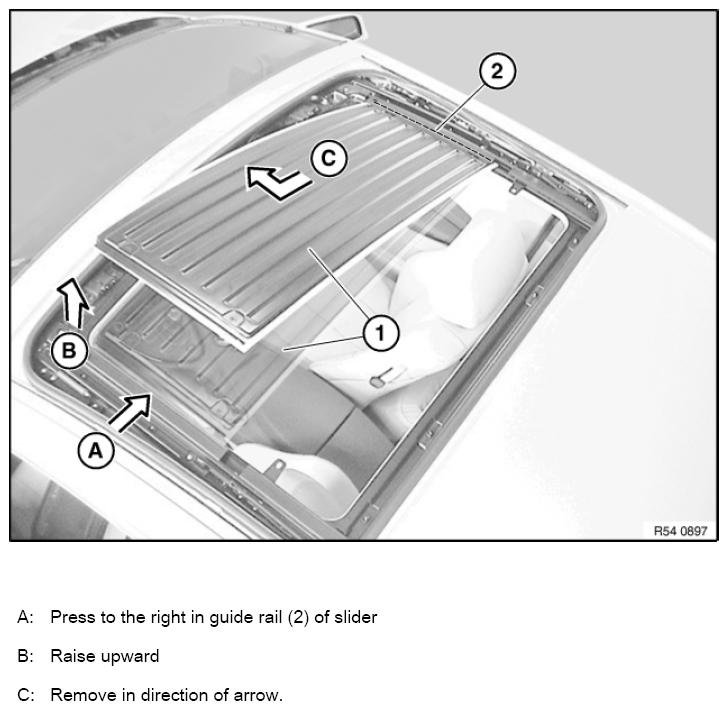

Fig 3: Removing Front Floating Headlining

G10063817

Courtesy of BMW OF NORTH AMERICA, INC.
