54 10 120 Replacing sealing for glass tilt sunroof cover
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove GLASS TILT SUNROOF COVER
NOTE:
Follow REPAIR INSTRUCTIONS for bonded gaskets on glass tilt sunroof.
NOTE:
To ensure that sealing is correctly positioned when reinstalled, pencil in old sealing position using a suitable implement.

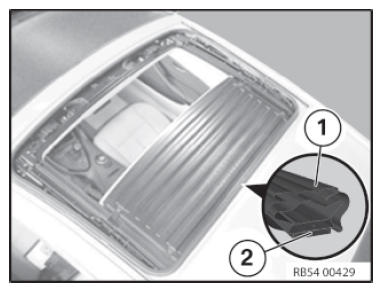

Pull off sealing (1) for glass tilt sunroof from body.
Installation note:
Clean bonding surface with adhesive remover (sourcing reference: BMW Parts Department).
Partially pull off protective film from adhesive tape (2).
Press sealing (1) without stretching (squashing).
Stick on sealing (1) in sections.
Carry out INITIALIZATION .
IMPORTANT:
Do not touch adhesive area.
Surface temperature ≥20 °C
Incorrect bonding of the sealing will result in leaks.
Surface temperature ≥20 °C
Incorrect bonding of the sealing will result in leaks.
