84 10 810 Removing and installing (replacing) Telematic Communication Box

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTRICAL DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRE .

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD
Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .

Unscrew nuts (1).

Release screw (2).

Remove the holder with TCB (3) from the body.

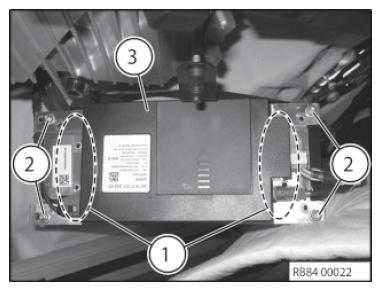

Fig 1: Identifying TCB Holder, Screw, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Release all nuts (2).

Remove TCB (3).

Installation note:

Note color coding of plug connections (1).

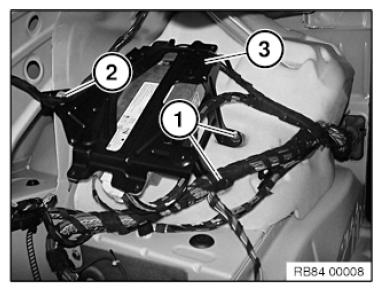

Fig 2: Identifying TCB, Plug Connections, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When replacing the TCB, check whether the faulty TCB is equipped with an EMERGENCY BATTERY :

if no , then the new part is installed without an emergency battery!
if yes , then the new part should be equipped with a new emergency battery (ordered separately, TCB is supplied without an emergency battery!)

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING
