84 10 800 Removing and installing Combox

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTRICAL DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRE .

Necessary preliminary work:

Disconnect BATTERY EARTH LEAD
Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .

Unscrew nuts (1).

Release screw (2).

Remove the holder with Combox (3) from the body.

Fig 1: Identifying TCB Holder, Screw, And Nuts

G10065166

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on Combox (2).

Unlock plug connections (1) and disconnect.

Remove Combox (2).

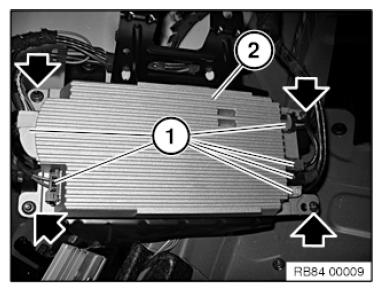

Fig 2: Identifying Combox Screws And Plug Connections

G10065169

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Note color coding of plug connections (1).

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING

For vehicles with Teleservices optional equipment:

Update services via menu in the central information display.
