63 31... Removing and installing/replacing fibre optic conductor of front door trim panel (storage compartment)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Fibre optic conductors are sensitive (risk of damage). Always handle carefully.

Necessary preliminary work:

Remove FRONT DOOR TRIM
Work station with cleaner working surface

Fibre optic conductor at bottom of storage compartment:

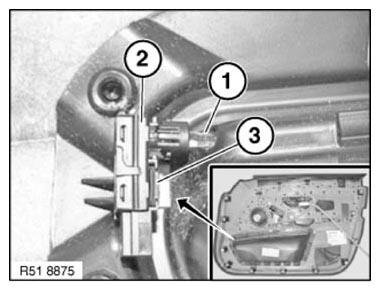

IMPORTANT: Carefully pull fibre optic conductor (1) out of LED module (2) from storage side.
(See next work step.)
LED must remain plugged into holder (3). (Risk of damage).

Fig 1: Pulling Fiber Optic Conductor Out Of LED Module

Courtesy of BMW OF NORTH AMERICA, INC.

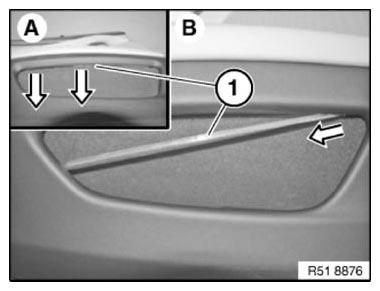

Grasp the end of the fibre optic conductor (1) with finger and unclip in direction of arrow.
Carefully pull fibre optic conductor (1) from LED module in direction of arrow.

Fig 2: Pulling Fiber Optic Conductor From LED Module
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

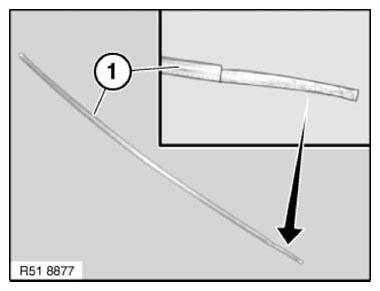

Check fibre optic conductor (1) for damage (scratches or cracks), replace if necessary.

Fig 3: Identifying Fiber Optic Conductor
