63 10... Adjust the fog lights (with electronic headlight adjustment device MAHA Lite 3)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Comply with PREREQUISITES FOR HEADLIGHT ADJUSTMENT

Refer to the manufacturer's operating instructions for the headlight adjustment device.

Switch on the headlight adjustment device by pressing any button.

Press F2 button. The shown display screen appears.

Perform the following settings:

The passenger car must be selected.
Enter the setting dimension for the headlight with buttons F1/F2: - 2, 0 %
The right/left-hand traffic must be selected according to the country.
Select the fog light type with the F3 button:
- EC : for halogen fog lights
- EC LED : for LED fog lights

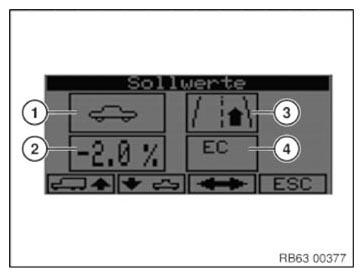

  Fig 1: Display - Headlight Adjustment Screen
  Courtesy of BMW OF NORTH AMERICA, INC.

The adjusted values are adopted for future measurements.

Press briefly the button for the applicable side of the vehicle (1) until symbol (2) appears.

The following symbols appear in the display:

O. K. (4): Adjustment is optimal.
O. K. (3): Adjustment is within the legal tolerance range. ADJUST FOG LIGHT until O. K. (4) is displayed.
Arrows (5): Adjustment is incorrect. ADJUST FOG LIGHT using arrows (5) until O. K. (4) is displayed.

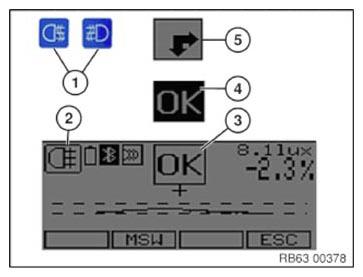

Fig 2: Identifying Symbols Displayed On Screen
Courtesy of BMW OF NORTH AMERICA, INC.
