63 11... Installing headlight repair kit

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove headlight. See LEFT XENON HEADLIGHT or RIGHT XENON HEADLIGHT .

NOTE: Damaged holders (1, 2, 3) can be replaced with the repair kit.
Replacement of headlight is not required.

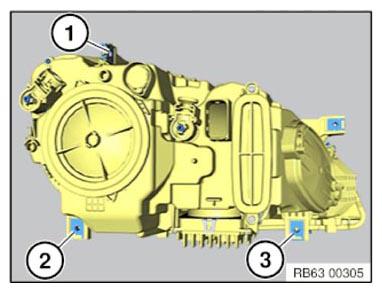

Fig 1: Identifying Damaged Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Holder 1 from first image:

Remove the damaged holder (1) as shown.

Fit holder from repair kit (2) and secure with screws (3).

Slide clamp (4) onto holder (2).

Holders 2 and 3 from the first image:

Remove the damaged holder (5) as shown.

Fit holder from repair kit (6) and secure with screws (8).

Slide clamp (7) onto holder (6).

After installation:

ADJUST HEADLIGHTS

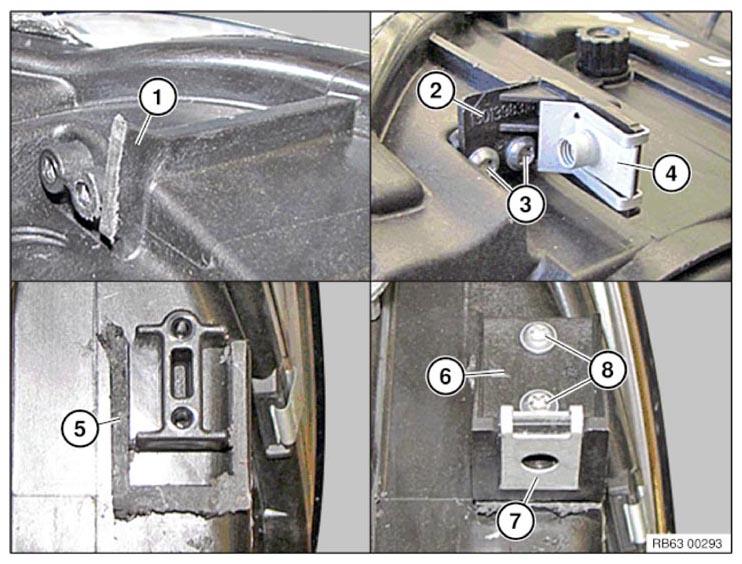

Fig 2: Replacing Holders
