63 11 820 Replacing left cornering light LED module (From 04/2015)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove HEADLIGHT .

Release screws (1).

Tightening torque 63 11 3AZ .

Remove LED module (2).

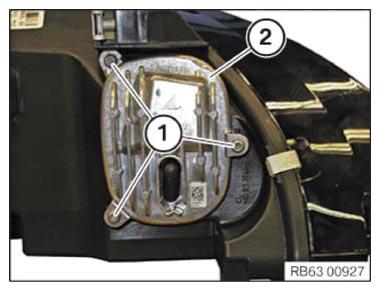

Fig 1: Identifying LED Module Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable tie (1).

Disconnect connector (2).

Remove LED module (3).

Installation note:

Replace cable tie (1).

IMPORTANT: Risk of damage due to moisture penetration.
Gasket (4) on LED module (3) must not be damaged or missing.

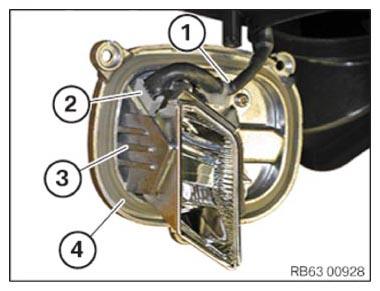

Fig 2: Identifying LED Module Connector, Cable Tie, And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
