63 11 820 Replacing left cornering light LED module (Before 04/2015)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove headlight. See LEFT HEADLIGHT WITH LED TECHNOLOGY or RIGHT HEADLIGHT WITH LED TECHNOLOGY .

Release screws (1).

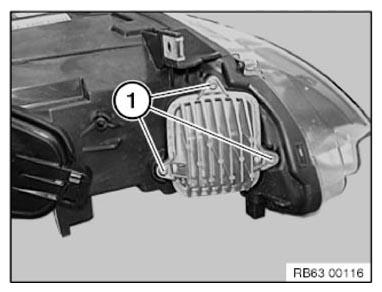

Fig 1: Identifying LED Module Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove LED module (2).

Disconnect plug connection (1).

Remove LED module (2).

Installation note:

Gasket (3) for LED module (2) must not be damaged and must be installed free from grease.

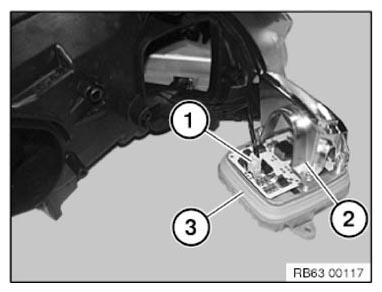

Fig 2: Identifying LED Module Plug Connection And Gasket
