63 11 800 Replacing left LED main light module left

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Attention.

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove headlight. See LEFT HEADLIGHT WITH LED TECHNOLOGY or RIGHT HEADLIGHT WITH LED TECHNOLOGY .

Release screws (1).

Tightening torque 63 11 1AZ .

Remove LED main light module (2).

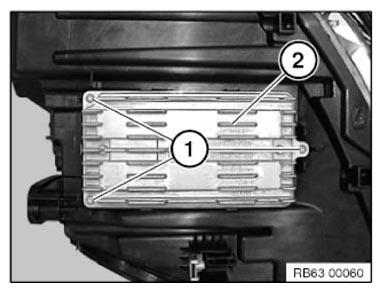

Fig 1: Identifying LED Main Light Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Gasket (1) for LED main light module (2) must not be damaged and must be installed free from grease.

Make sure LED main light module (2) is correctly installed.

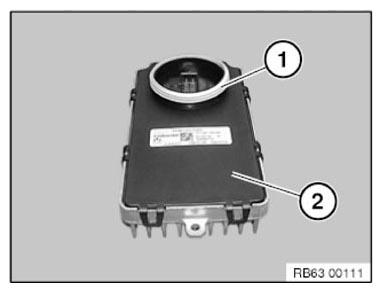

Fig 2: Identifying LED Main Light Module Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .
