63 11 760 Replace FLEL control unit (From 04/2015)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Attention.

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove HEADLIGHT WITH LED TECHNOLOGY on the left.

Release screws (1).

Tightening torque 63 11 1AZ .

Pull off Frontal Light Electronics control unit (2) from headlight.

Fig 1: Identifying Frontal Light Electronics Control Unit And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Installation note:

Gasket (3) on Frontal Light Electronics control unit (2) should not be damaged or missing.

Ensure the correct installation of Frontal Light Electronics control unit (2).

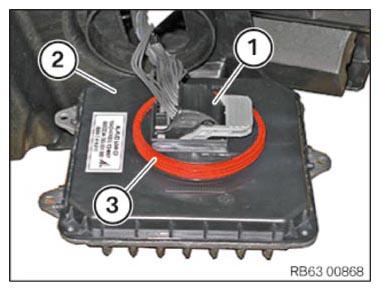

Fig 2: Identifying Frontal Light Electronics Control Unit, Connector, And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
