63 25 000 Removing and installing/replacing auxiliary brake light

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Remove TAILGATE TRIM

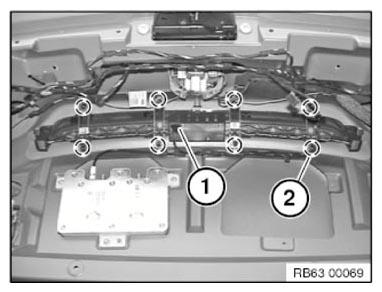

Disconnect plug connection (1).

Unfasten screws (2).

Fig 1: Identifying Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

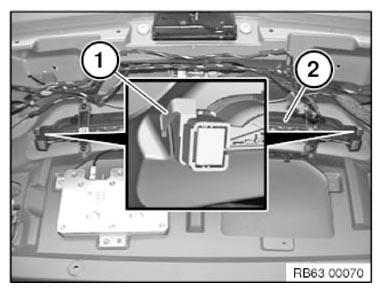

Release latch mechanism (1) on left and right of auxiliary brake light (2).

Remove auxiliary brake light (2).

Fig 2: Identifying Latch Mechanism On Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

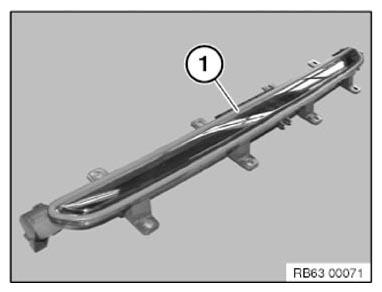

Seal (1) on the additional brake light must not be damaged or missing.

Fig 3: Identifying Seal On Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.
