41 12 548 Replacing Rear Cross Member On Luggage Compartment Floor (Tail Panel Removed)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Observe procedure for REPAIR STAGE 3 .

STRIP DOWN VEHICLE

Use only APPROVED SPOT-WELDING APPARATUS for repairs.

The following new body parts are required:

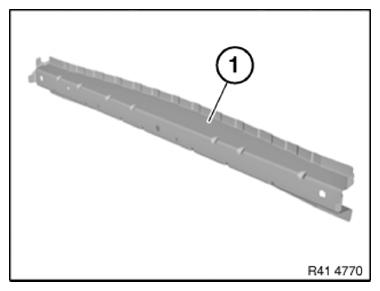

(1) End of luggage compartment floor

Fig 1: Identifying End Of Luggage Compartment Floor
Courtesy of BMW OF NORTH AMERICA, INC.

Removing cross-member

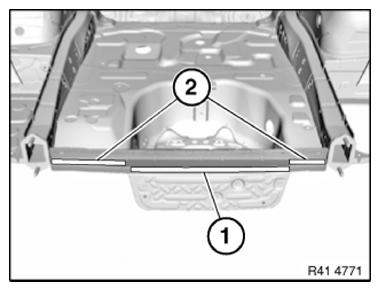

Open welded connections in areas (1) and (2).

Fig 2: Identifying Welded Connections

G09916002

Courtesy of BMW OF NORTH AMERICA, INC.

Operation is described on the left side. Right side identical.

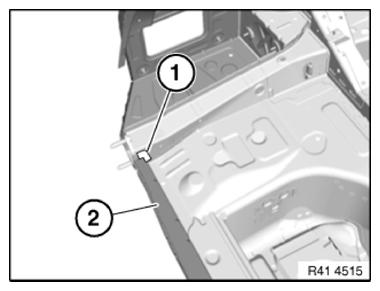

Open welded connections in area (1) and remove cross member (2).

Fig 3: Identifying Cross Member And Welded Connections

G09878615

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Fit cross member in combination with TAIL PANEL .

Installing cross-member:

Install cross member and weld the same as series.
