41 12 548 Stripping Operations - Replacing Rear Cross-Member On Luggage Compartment Floor (Tail Panel Removed)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Remove exhaust system (job number: 18 00 020)
- Remove heat shields

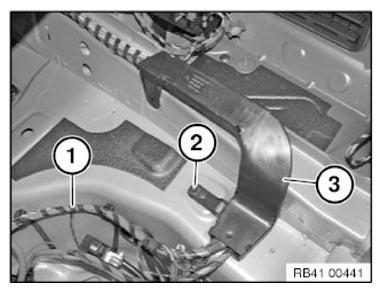

Undo the positive battery cable (1).
Undo nut (2) and put cable channel (3) including wiring harness to one side.
