66 53 522 Replacing reversing camera

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove REVERSING CAMERA

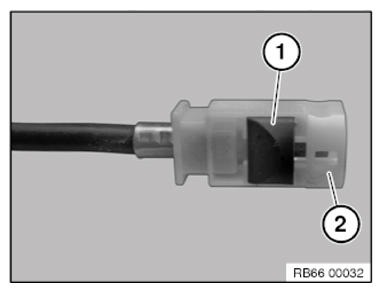

Unclip the fastener (1) from the plug connection (2).

Fig 1: Identifying Plug Connection And Fastener

G10049029

Courtesy of BMW OF NORTH AMERICA, INC.

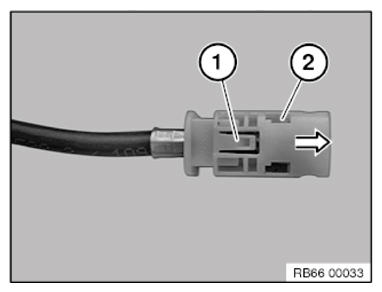

Unlock latch mechanism (1) and detach connector housing (2) from plug connection.

Fig 2: Detaching Connector Housing From Plug Connection

G10049030

Courtesy of BMW OF NORTH AMERICA, INC.

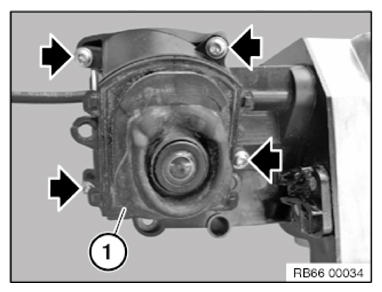

Remove rubber seal (1).

Release screws.

Fig 3: Locating Rubber Seal And Screws

G10049031

Courtesy of BMW OF NORTH AMERICA, INC.

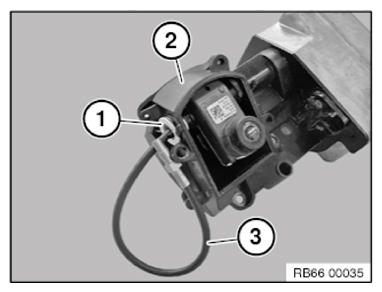

Pull out cable duct (1).

Remove cover (2).

Feed cable (3) out of cover (2).

Fig 4: Identifying Cable, Cable Duct, And Cover

G10049032

Courtesy of BMW OF NORTH AMERICA, INC.

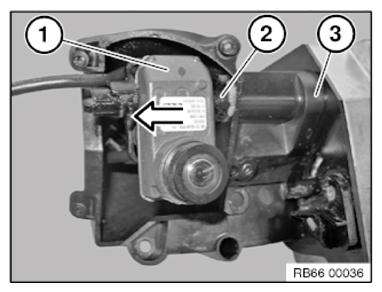

Remove reversing camera (1) from the housing in direction of arrow.

Installation note:

Ensure correct latching of shaft (1) in housing (3).

Fig 5: Removing Reversing Camera From Housing

G10049033

Courtesy of BMW OF NORTH AMERICA, INC.

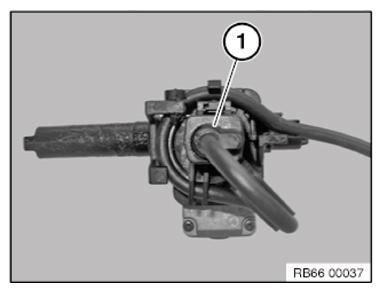

Unfasten plug connection (1) and disconnect.

Installation note:

Ensure correct cable routing.

Fig 6: Identifying Plug Connection

G10049034

Courtesy of BMW OF NORTH AMERICA, INC.

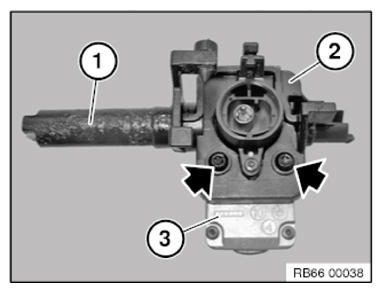

Release screws.

Remove the connector housing (3) from the reversing camera (2).

Installation note:

Grease the shaft (1) sufficiently prior to installation.

Fig 7: Identifying Reversing Camera, Connector Housing, And Screws

G10049035

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out VEHICLE PROGRAMMING AND ENCODING .
