66 54 005 Removing and installing/replacing control unit for Night Vision System

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Disconnect BATTERY CABLE
Remove SIDE PANEL ON LEFT DASHBOARD

Unlock plug connections and disconnect.

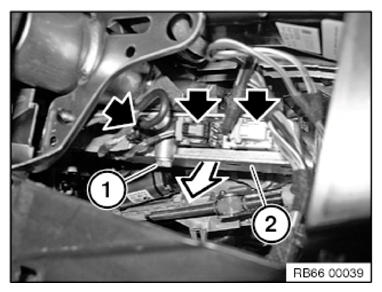

Release bolt (1) and remove control unit (2) in direction of arrow.

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (1) on control units (2) must be correctly seated in the applicable bracket.

Fig 2: Identifying Guides On Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

NOTE: New component contains a CD with deblocking code.

CD is requested during encoding/programming by the SSS.
