65 50 175 Replacing front trim panel for central information display (CID)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove CENTRAL INFORMATION DISPLAY

Release screws at marked points.

Tightening torque 65 50 3AZ .

NOTE: To tighten screws, use special tool 00 9 460 .

Remove rear cover (1) from CID.

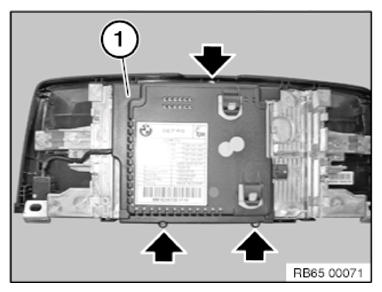

Fig 1: Identifying CID Rear Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach adhesive tape fixation (1).

Installation note:

A new adhesive tape is included with the replacement part delivery.

Unfasten plug connection (2) and disconnect.

IMPORTANT: Risk of damage!
The wiring harness (4) can be crushed by the cover (3) at the position marked by the arrow!
Installation note:
The adhesive tape (1) of the wiring harness (4) must be applied before installation of the cover (3)!

Fig 2: Identifying Wiring Harness, Plug Connection, Cover, And Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws at marked positions.

Tightening torque 65 50 2AZ .

NOTE: To tighten screws, use special tool 00 9 450 .

Feed out cable (2) from guides.

Installation note:

Ensure correct cable routing (2).

Raise latch mechanisms (1) carefully and remove CID (4) from trim (3).

Installation note:

Make sure latch mechanisms (1) are heard to click into place.

Make sure cover (3) is correctly seated on CID (4).

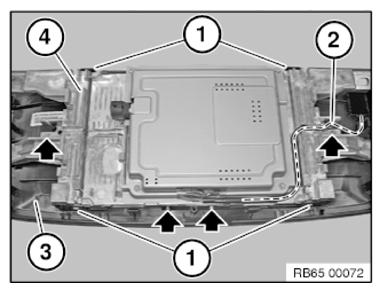

Fig 3: Removing/Installing Cover For Central Information Display (CID)

Courtesy of BMW OF NORTH AMERICA, INC.
