65 50 057 Removing and installing/replacing Central Information Display (CID)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 460

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON DASHBOARD IN MIDDLE

NOTE: Build version up to 07/2012 only.

Unclip the screw covers (1) from CID (2).

Release screws underneath.

Tightening torque 65 50 2AZ .

Installation note:

To tighten screws, use special tool 00 9 460 .

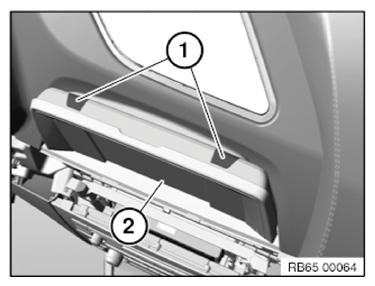

Fig 1: Identifying CID Screw Covers

G10048928

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque 65 50 1AZ .

Installation note:

To tighten screws, use special tool 00 9 460 .

Unclip CID (1) in direction of arrow from rear cover.

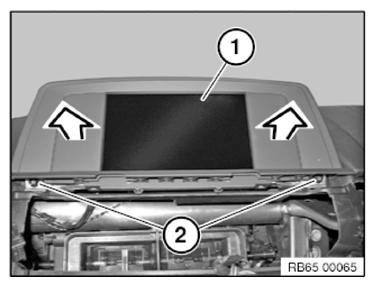

Fig 2: Removing CID From Rear Cover

G10048929

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

CID must noticeably and audibly lock at the marked points on the rear cover (1).

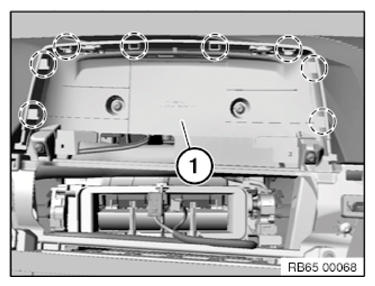

Fig 3: Identifying Fastening Points For CID On Rear Cover

G10048930

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Replace REAR COVER
(Front and rear covers are available as spare parts.)

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
