51 45 385 Removing and installing/replacing middle decorative strip on dashboard

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

IMPORTANT: Risk of damage.

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Unclip decorative strip (1) with special tool 00 9 325 at marked points.

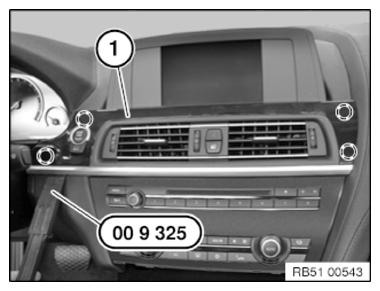

Fig 1: Removing Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and (2) and disconnect.

Remove decorative strip (3).

Fig 2: Identifying Plug Connections And Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Retaining clips (1) of decorative strip (4) must not be missing or damaged.

Replacement

Reinstall retaining clips (1).
Modify START/STOP SWITCH (2)
Modify CENTER FRESH AIR GRILLE (3)

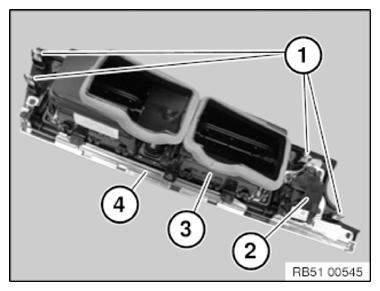

Fig 3: Identifying Decorative Strip, Retaining Clips, Start/Stop Switch, And Center Fresh Air Grille
Courtesy of BMW OF NORTH AMERICA, INC.
