65 50 030 Removing and installing/replacing TV module
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.
NOTE:
Follow notes for HANDLING OPTICAL FIBRES
.
Necessary preliminary tasks:
- Disconnect BATTERY EARTH LEAD
- Remove LUGGAGE COMPARTMENT WHEEL ARCH TRIM ON LEFT .

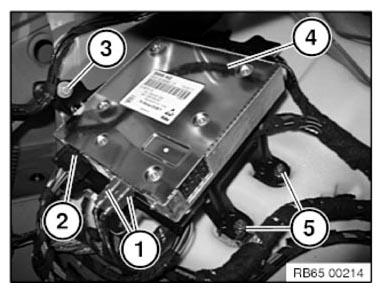

Unlock plug connections (1) and (2) and disconnect.
Release screw (3) and nuts (5).
Remove TV module (4) with brackets.
For equipment specifications including a Combox:

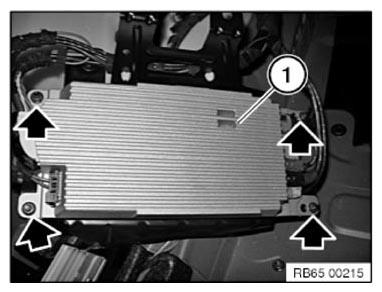

Release nuts at marked points.

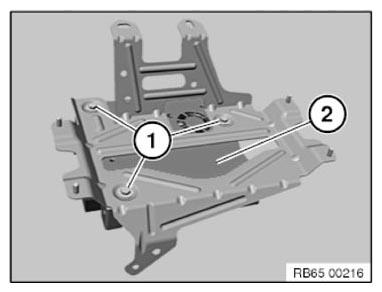

Release screws (1).
Remove TV module (2).
