65 24 020 Removing and installing/replacing wave trap

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR ROOF PILLAR, REAR RIGHT

Unlock plug connections (1) and disconnect.

Release screw (2).

Remove blocking circuit (3).

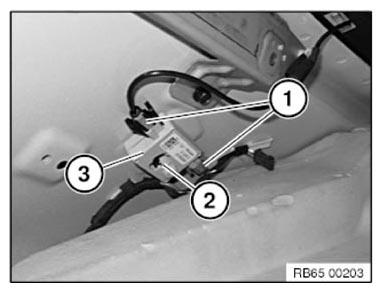

Fig 1: Identifying Blocking Circuit Plug Connections And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit wave trap (1) so that screw (2) engages thread (3) and locating pin (4) engages bore (5).
