65 12 210 Removing and installing (replacing) the radio receiver CHAMP

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE CABLE
Remove RADIO AND IHKA CONTROLS

Release screws (1).

Pull out the CHAMP (2) to the front.

Installation note:

Make sure CHAMP (2) is correctly seated on retaining lugs at the marked points.

Fig 1: Pulling Head Unit Forward

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Remove CHAMP (2).

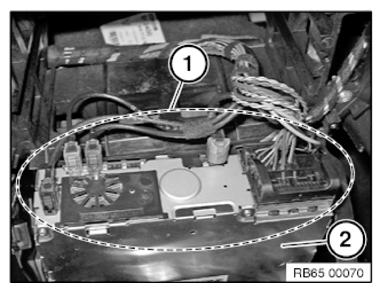

Fig 2: Identifying CHAMP Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

For vehicles with Teleservices optional equipment:

Update services via menu in the central information display.
