65 90 540 Removing and installing/replacing aerial of Global Positioning System (GPS)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: READ AND COMPLY WITH NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Partially removing TRIM FOR STORAGE SHELF

List sound insulation (1).

Release screw (2).

Unfasten plug connection (3) and disconnect.

Remove GPS aerial (4).

Installation note:

Make sure the GPS aerial is correctly installed!

Position GPS aerial (4) so that positioning pin on back engages in associated bore hole.

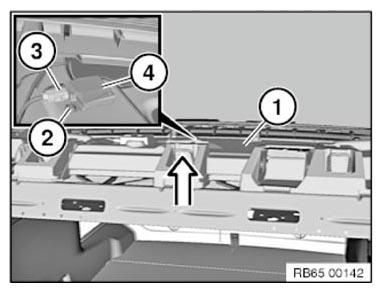

Fig 1: Removing GPS Aerial

Courtesy of BMW OF NORTH AMERICA, INC.
