65 77 016 Removing and installing/replacing airbag control unit

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: NOTE AIRBAG SAFETY REGULATIONS !
Incorrect handling can lead to airbag deployment and cause injury.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Disconnect NEGATIVE BATTERY CABLE
Remove RIGHT GLOVE BOX WITH HOUSING

Release screw (1).

Tightening torque 65 77 1AZ .

Press airbag control unit (2) out of rubber mounts (3).

Unlock plug connections (4) and disconnect.

Remove airbag control unit (2).

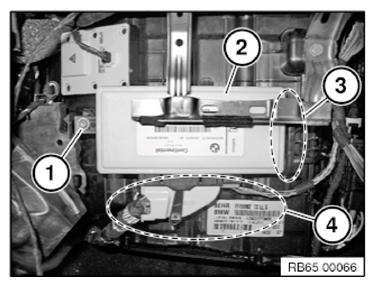

Fig 1: Identifying Airbag Control Unit, Rubber Mounts, Plug Connections And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure guides (1) are correctly seated in rubber mount (2).

Fig 2: Identifying Rubber Mount And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
