51 16 366 Removing and installing right glove box with housing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove bottom-left TRIM FOR INSTRUMENT PANEL .
Remove side panel on dashboard. See REMOVING SIDE PANEL or REMOVING SIDE PANEL (WITH SWITCH FOR FRONT PASSENGER AIRBAG DEACTIVATION) .

Release side (1) and lower screws (2) and (3).

Tightening torque 51 16 16AZ

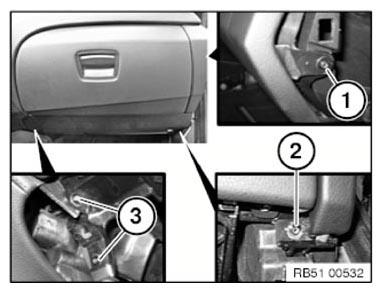

Fig 1: Identifying Screws

G10062658

Courtesy of BMW OF NORTH AMERICA, INC.

Open glove box cover (3) if necessary.

Release upper screws (1) on glove box (2).

Tightening torque 51 16 16AZ .

Pull glove box (2) down at a slant until glove box (2) disengages.

Installation note:

Glove box (2) must engage noticeably when it is slid into place.

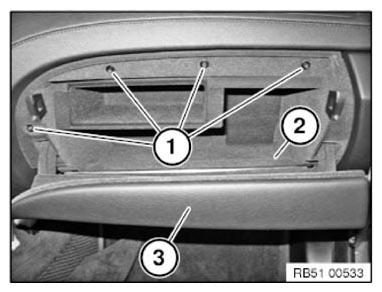

Fig 2: Identifying Glove Box Cover And Upper Screws On Glove Box

G10062659

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) on damper (3) and glove box light (2).

Slip out glove box and set aside.

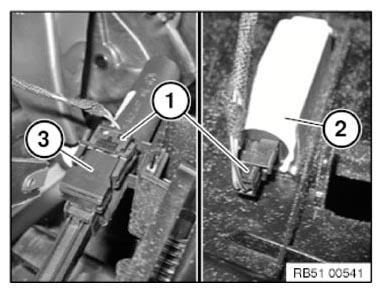

Fig 3: Identifying Plug Connections

G10062660

Courtesy of BMW OF NORTH AMERICA, INC.
