12 41 020 Remove and install/replace the starter motor (N63O1)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition.
Disconnect BATTERY NEGATIVE LEAD .
Remove right engine support arm. See REPLACING RIGHT ENGINE SUPPORT ARM (N63) or REPLACING RIGHT ENGINE SUPPORT ARM (N63 WITH AWD) .

Release screws (1).

Tightening torque 12 41 1AZ .

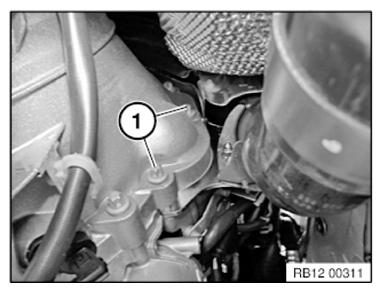

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and remove.

Slacken nut (2).

Tightening torque 12 42 2AZ .

Disconnect positive battery cable.

Release screws (3) and detach cable clip from starter motor.

Remove starter motor (4) in direction of travel.

Fig 2: Removing Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation not:

Check starter pinion and starter ring gear for damage. If necessary, replace damaged components.

Reassemble the vehicle.

Only during starter replacement and on vehicles with MSA (automatic engine start-stop function):

Use BMW diagnosis system to reset the starter counter.
