64 11 868 Removing and installing/replacing actuator drive for defrosting flap

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRAL INFORMATION DISPLAY BACK COVER
Remove FRONT MID-RANGE SPEAKER

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATING AND AIR CONDITIONING SYSTEM

Release screws (1).

Remove actuator drive (3) and unlock and disconnect plug connection (2).

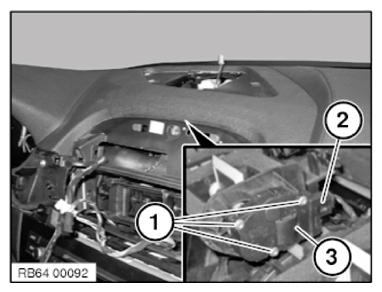

Fig 1: Identifying Actuator Drive Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be readdressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and air conditioning function
Flap motors
Readdress flap motors
