65 13 060 Removing and installing/replacing speaker (midrange speaker, in instrument panel)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Unclip trim (1) from latch mechanisms using special tool 00 9 327 and remove upwards.

Fig 1: Removing Trim

G10048898

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clamps and guides on marked points must not be damaged.

Fig 2: Locating Clamps And Guides

G10048899

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 65 13 5AZ .

Installation note:

To tighten screws, use special tool 00 9 460 .

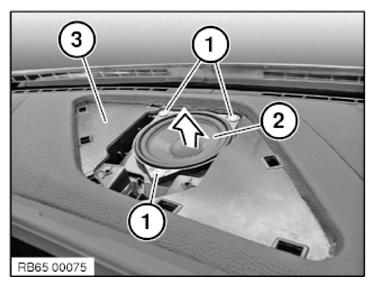

Remove mid-range speaker (2) from dashboard (3).

Disconnect plug connection underneath.

Remove mid-range speaker (2).

Fig 3: Removing Mid-Range Speaker From Dashboard

G10048900

Courtesy of BMW OF NORTH AMERICA, INC.
