64 11 841 Replacing actuator drive for right footwell flap

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT GLOVE BOX WITH HOUSING

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATING AND AIR-CONDITIONING UNIT

Release screws (1).

Installation note:

Replace screws (1).

Take off holder (2).

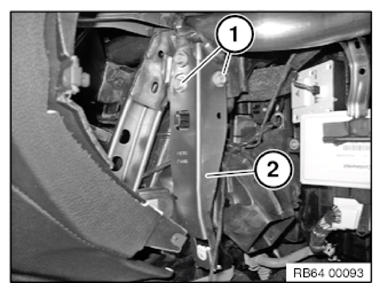

Fig 1: Identifying Holder Screws

G10048675

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip connecting piece (1) and slide downwards.

Installation note:

Latching of connecting piece (1) must be felt.

Fig 2: Unclipping Connector Piece

G06886223

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out right footwell air outlet duct (2).

If necessary, disconnect plug connections at actuators.

Fig 3: Identifying Right Footwell Air Outlet Duct With Screws

G06886224

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove servomotor (3) and unlock and disconnect plug connection (2).

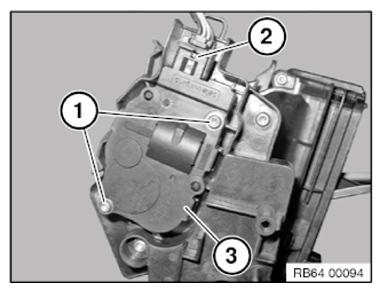

Fig 4: Identifying Servomotor Plug Connection And Screws

G10048669

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be readdressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and air conditioning function
Flap motors
Readdress flap motors
