61 71 100 Removing and installing/replacing windscreen washer pump

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Before replacing the windscreen washer pump, check the washer fluid reservoir for dirt contamination and clean if necessary.

Necessary preliminary tasks:

Remove FRONT WHEEL ARCH COVER REAR SECTION
Remove SIDE REPEATER ON RIGHT

NOTE: Washer fluid will escape when the windscreen washer pump is pulled out; have a collecting vessel and a cleaning cloth ready.

Release cable strap (1).

Unlock filler channel (2) on washer fluid reservoir (3) and pull out.

Release screw (4).

Detach water fluid line (5) from holder.

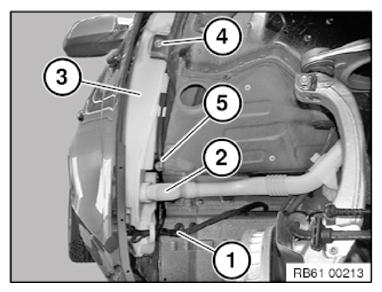

Fig 1: Identifying Cable Strap, Filler Channel, Washer Fluid Reservoir, Water Fluid Line, And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Pull washer fluid reservoir (1) in direction of arrow slightly towards front.

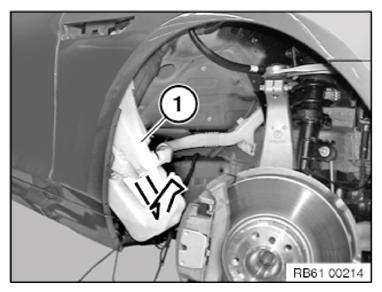

Fig 2: Removing Washer Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Feed cable for side repeater (1) out of washer fluid reservoir (2).

Press windscreen washer pump (3) upwards in direction of arrow and lay to left side.

Fig 3: Pressing Windscreen Washer Pump Upward

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Detach washer fluid line (2) from windscreen washer pump (3).

Remove windscreen washer pump (3).

Fig 4: Identifying Windscreen Washer Pump, Washer Fluid Line And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, coat sealing ring of windscreen washer pumps with lubricant.

Ensure hose pipe is laid without kinks.

Make sure electrical leads are correctly laid.
