61 31 197 Removing/installing (replacing) center console operating facility (M6 with twin-clutch gearbox)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe notes on PROTECTION FROM ELECTROSTATIC DISCHARGE .
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks:
- Remove CENTER CONSOLE TRIM

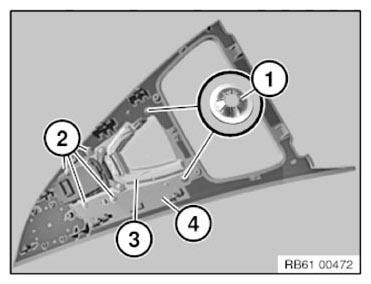

Release lock washers (1).
Unfasten screws (2).
Remove center console operating unit (3) from center console trim (4).
Replacement:
Remount ELECTROMECHANICAL PARKING BRAKE .
