61 31 134 Removing and installing/replacing USB audio interface connecting socket

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right CENTER CONSOLE COVER

Insert suitable tool (1) as pictured through opening in center console support (2).

Using suitable tool (1) carefully press connecting socket as pictured out of storage compartment.

Fig 1: Pressing Connecting Socket Out Of Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) and remove connecting socket.

Installation note:

Retaining lug (3) must not be damaged.
Make sure connecting socket (2) is correctly seated in storage compartment (4).

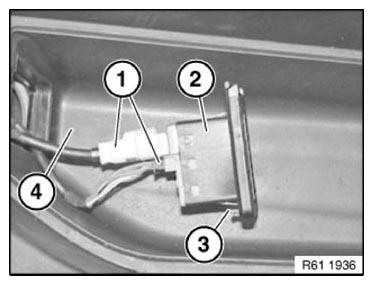

Fig 2: Identifying Storage Compartment, Connecting Socket, Retaining Lug, And Plug Connections
Courtesy of BMW OF NORTH AMERICA, INC.
