61 31 041 Removing and installing operating element for assist system
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .
Necessary preliminary tasks:

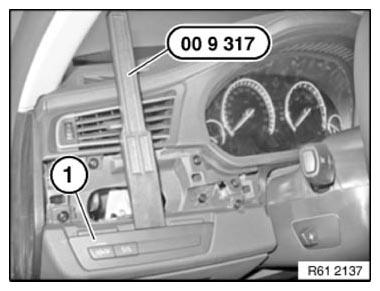

Carefully lever driver assist system (1) out with special tool 00 9 317 .
Disconnect plug connection behind and remove driver assist system (1).
Installation note:
Make sure driver assistance system (1) is correctly seated.
