61 21 010 Remove and install or replace battery

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION for handling the vehicle battery.

To ensure the correct safety and convenience functions, install only the original battery (battery size and type) stored in the vehicle order. OBSERVE NOTE ON BATTERY REPLACEMENT .

Necessary preliminary tasks:

Remove POWER DISTRIBUTION BOX

Release screws (1).

Tightening torque 61 21 5AZ .

Remove retaining bracket (2) from battery (3).

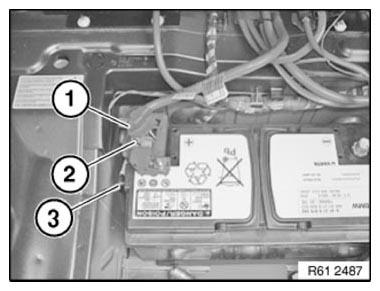

Fig 1: Identifying Retaining Bracket, Battery, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen nut (1).

Tightening torque 61 21 1AZ

IMPORTANT: Do not under any circumstances use force to pull or lever off safety battery terminal.

Pull off safety battery terminal (2) towards top, lay to one side and secure.

Remove vent line (3).

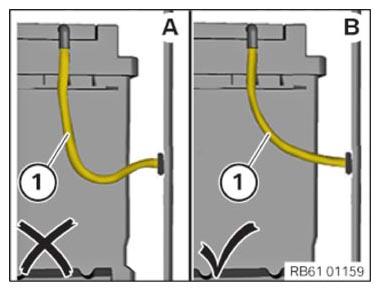

Fig 2: Identifying Vent Line, Safety Battery Terminal, And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Always route ventilation line (1) at a downhill gradient outwards to prevent any siphoning action.
Illustration "A" depicts an incorrect installation, illustration "B" depicts a correct installation.

Fig 3: Identifying Correct And Incorrect Ventilation Line Installation

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove side holder (2).

Tightening torque 61 21 5AZ .

Remove battery.

Installation note:

Ensure correct fit of the battery in the battery fixture.

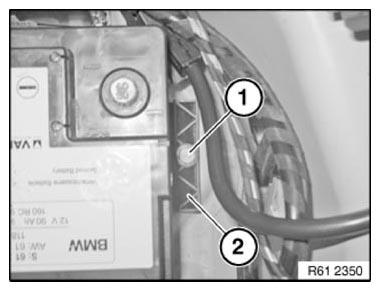

Fig 4: Identifying Side Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Extra in versions starting from 07/2013:

Release screw (1) and remove rear holder.

Tightening torque 61 21 5AZ

Remove battery.

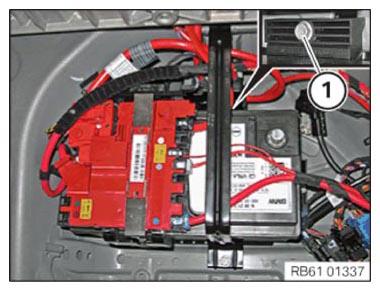

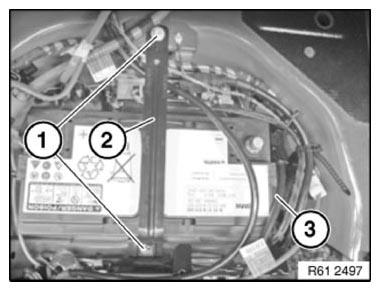

Fig 5: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Vehicles with intelligent battery sensor (IBS)
REGISTER BATTERY REPLACEMENT

NOTE: If Check Control message is present:

Delete fault memory
