61 14 010 Removing and installing/renewing power distribution box (on battery)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION for handling the vehicle battery.

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE CABLE

Fold up covers (1). Unscrew nuts (2).

Tightening torque 61 21 2AZ .

Unscrew nut (3).

Tightening torque 61 21 3AZ .

Disconnect plug connection (4).

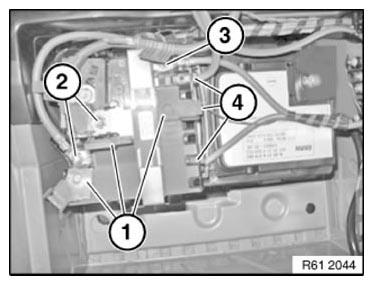

Fig 1: Identifying Covers, Nuts, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press locking brackets (1) downwards and unclip in direction of arrow.

If necessary, using a screwdriver, expand locking bracket (1) at lower end and clip out.

Remove power distribution box (2) towards top.

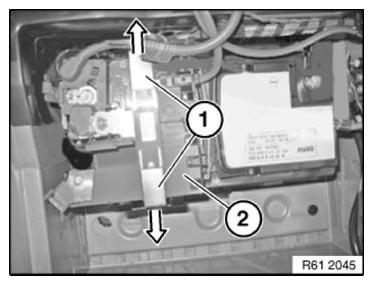

Fig 2: Removing Power Distribution Box
