61 12 200 Replacing wiring harness in left or right front door

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .

Necessary preliminary work:

Close front side window completely
Disconnect BATTERY GROUND LEAD
Remove SOUND INSULATION IN FRONT DOOR
Remove LEFT-HAND OUTER DOOR HANDLE ON FRONT DOOR .

Unlock plug connections (1) and disconnect.

If necessary, unlock and disconnect Soft Close plug connection.

Unclip door wiring harness (2) at points (3).

Feed out door wiring harness (2).

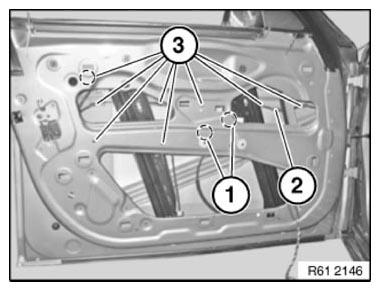

Fig 1: Identifying Plug Connections And Door Wiring Harness Fastening Points

G10063923

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure door wiring harness (2) is correctly laid.

NOTE: Front side panel shown removed for purposes of clarity.

Release screw (1), fold door wiring harness connector on A-pillar (2) downwards slightly and remove.

Unlock plug connection behind and disconnect.

Pull rubber grommet (3) in direction of arrow out of front door (4).

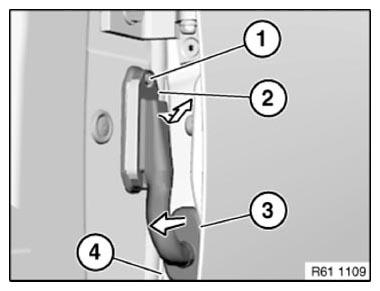

Fig 2: Pulling Rubber Grommet Out Of Front Door

G10063924

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out door wiring harness towards front to A-pillar and remove.
