51 21 170 Removing and installing or replacing outer door handle from left or right front door

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Graphics used come from the F01.

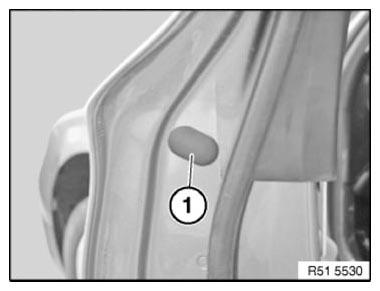

Lever out seal plugs (1).

Fig 1: Identifying Seal Plug

Courtesy of BMW OF NORTH AMERICA, INC.

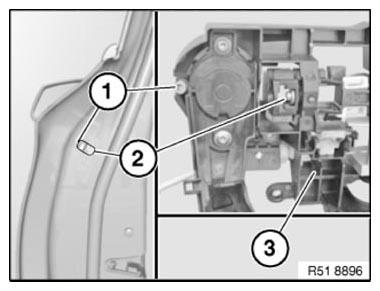

Release clamping bolt (2) from the support for the outer door handle (3).

Fig 2: Identifying Clamping Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

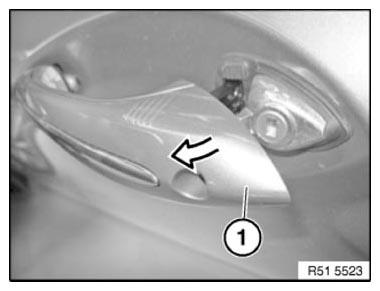

Feed out the rear outer door handle (1) in direction of arrow.

Swivel the outer door handle (1) further in direction of arrow and feed it out at front.

Fig 3: Removing Outer Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

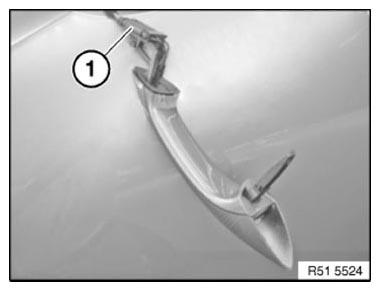

Unlock plug connections (1) and disconnect.

Fig 4: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
