61 12 062 Replacing wiring harness on front bumper

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES and cables.

Necessary preliminary tasks:

Remove FRONT BUMPER PANEL

Disconnect all available plug connections.

The following plug connections may be available:

(1) Fog light
(2) Ultrasonic sensors
(3) Central connector
(4) Night Vision camera
(5) Pedestrian protection sensor.
(6) ACC

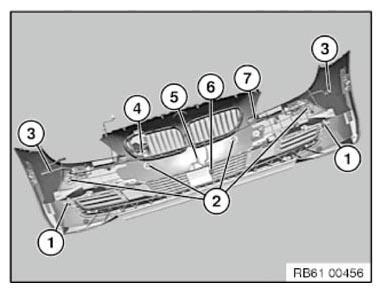

Fig 1: Identifying Front Bumper Panel Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip wiring harness (7) from bumper panel.

Remove wiring harness (7).

Installation note:

Make sure wiring harness (7) is laid correctly.
