67 61 007 Removing and installing (replacing) electric motor with gearbox (rear) for glass tilt sunroof

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Lower HEADLINING

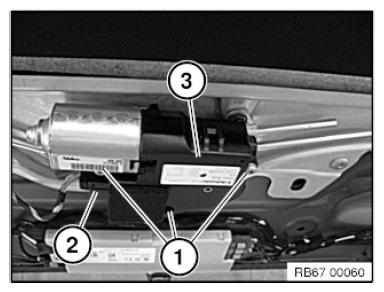

Disconnect plug connection (2) and if necessary expose cable.

Release screws (1) and remove electric motor (3).

Tightening torque 54 13 1AZ .

Fig 1: Identifying Electric Motor Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

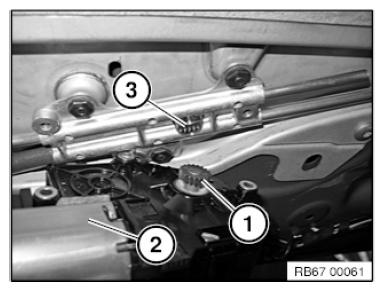

Engage gear (1) of electric motor (2) exactly in gearing (3).

Fig 2: Identifying Electric Motor Gear And Teeth

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Initialize GLASS TILT SUNROOF .
