67 31 570 Removing and installing/replacing drive unit for head restraint height adjustment on left or right front seat

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CRASH-ACTIVE HEADREST
Remove the backrest cover in the head restraint area. See DRIVER'S SEAT BACKREST COVER (NORMAL/ELECTRIC) , FRONT PASSENGER SEAT BACKREST COVER (NORMAL/ELECTRIC) , DRIVER'S SEAT BACKREST COVER (SPORT) , or FRONT PASSENGER SEAT BACKREST COVER (SPORT) .

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque 67 31 3AZ .

Feed out drive unit for head restraint height adjustment (3) in direction of arrow and remove.

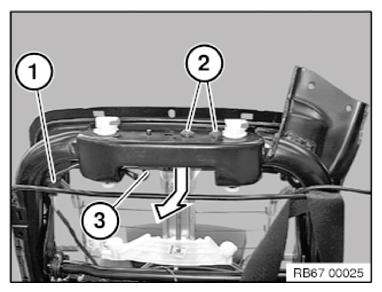

Fig 1: Removing Drive Unit For Head Restraint Height Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
INITIALIZE drive unit for head restraint height adjustment.
