67 65 010 Removing and installing or replacing drive unit for roller sunblind

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove TRIM FOR STORAGE SHELF

Cut open cable strap (2).

Installation note:

Cable strap (2) must be renewed.

Disconnect plug connection (3).

Release screws (4).

Remove electric motor (1) with drive linkage.

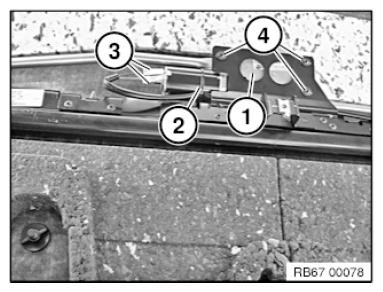

Fig 1: Identifying Electric Motor, Plug Connection, Cable Strap, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (3).

Remove electric motor (1) from drive linkage (2).

Installation note:

Drive linkage (2) can only be installed in one position.

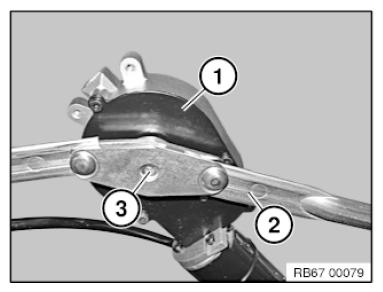

Fig 2: Identifying Electric Motor, Drive Linkage, Screw

Courtesy of BMW OF NORTH AMERICA, INC.
