67 62 000 Removing and installing or replacing flat motor for front left or right power window regulator

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT POWER WINDOW REGULATOR

Unfasten screws (2).

Tightening torque 67 62 1AZ .

Remove flat motor (1) from power window regulator.

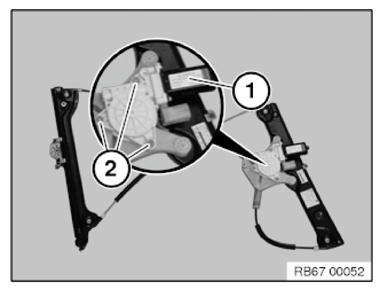

Fig 1: Identifying Power Window Regulator Flat Motor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure drive shaft (2) is correctly seated in mounting (1) at power windows (3).

Fig 2: Identifying Shaft And Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

An initialization must be carried out in order to activate anti-trap mechanism.

OBSERVE information on initializing power window regulator.
