51 33 000 Removing and installing (replacing) power window regulator in left or right front door
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove SIDE WINDOW

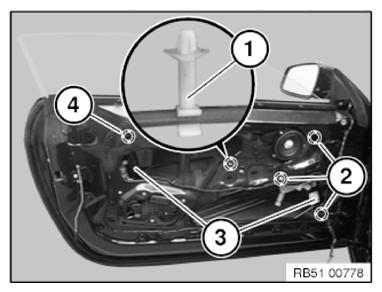

Lift cover (1) and slacken nut (2).
Installation note:
Nut is tightened during adjustment of side window.
Remove drive cable from clip (1).
Release nuts (2 and 4).
Feed out window lift rails (3).
Installation note:
Clip in the drive cable correctly in clip (1).
Tighten nuts (2 and 4).
Tightening torque 51 33 6AZ .
Install DOOR WINDOW GLASS .
Adjust CAVITY GAP .
Replacement:
Remount FLAT MOTOR FOR POWER WINDOW REGULATOR .
