51 24 130 Removing and installing/replacing striker for tailgate lock
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove COVER FROM TOP TAIL PANEL

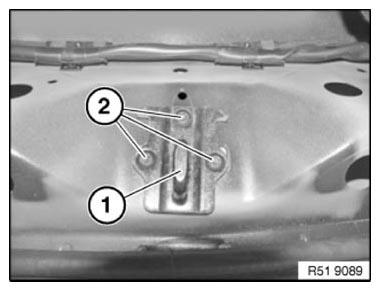

Unfasten screws (2).
Tightening torque 51 24 3AZ .
Remove striker (1) for rear lid lock.
Installation note:
Adjust REAR LID LOCK .
IMPORTANT:
Striker and tailgate lock must not be greased.
