51 43 004 Removing and installing/replacing decorative strip on left or right side trim panel

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SIDE TRIM PANEL

Release screws (1).

Remove decorative strip from side trim panel (2).

Tightening torque 51 43 4AZ .

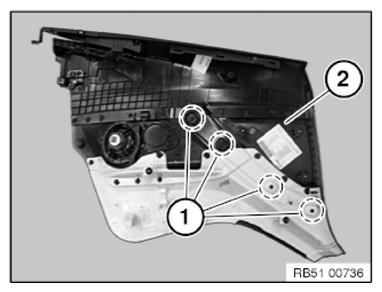

Fig 1: Identifying Side Trim Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
