51 43 002 Removing and installing rear left or right side trim panel

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BACKREST FOR REAR SEAT

Release screw (1).

Unclip side trim panel (2) at marked points.

Unlock associated plug connections and cable clip and disconnect.

Remove side trim panel (2).

Installation note:

Make sure edge protection (3) on side trim panel is correctly seated.

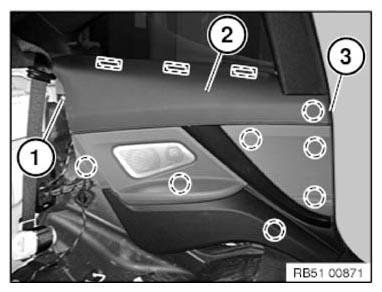

Fig 1: Identifying Edge Protection, Side Trim Panel, And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit all clips (1) with sealing ring.

If necessary, replace faulty clips (1).

IMPORTANT: Different types of clips are used.
Note color coding.

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.
