51 12 080 Removing and installing/replacing rear cover on bumper panel (M Aerodynamic package/M5)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR BUMPER TRIM

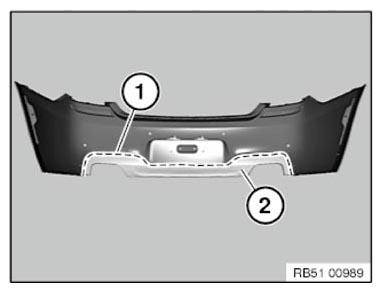

Release latch mechanisms (1) along line.
Remove cover (2).
Installation note:
Latch mechanisms on cover (2) must not be damaged or missing.
