51 12 050 Removing and installing/replacing support for rear bumper panel

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BUMPER PANEL

Unscrew nuts (1).

Tightening torque 51 12 1AZ .

Remove support (2).

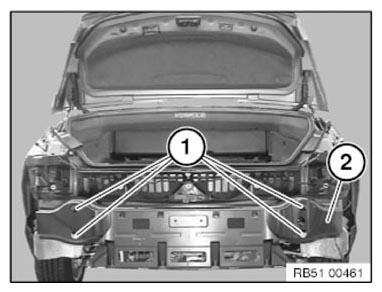

Fig 1: Identifying Support And Nuts Of Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unclip adapter by pressing on the retaining tab (1) and modify.

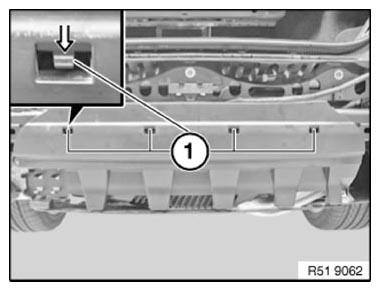

Fig 2: Identifying Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.
