51 16 383 Removing and installing/replacing damper for glove box

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove RIGHT GLOVE BOX

NOTE: For clarification purposes, the damper rod has already been removed from the retaining bracket of the glove box cover the graphic.

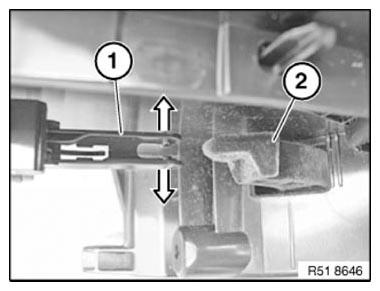

Unclip damper rod (1) from retaining bracket in direction of arrow of glove box cover (2) and slide back towards rear.

Fig 1: Unclipping Damper Rod From Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

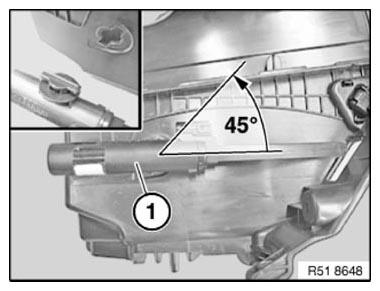

Turn damper (1) approx. 45° in direction of arrow and disconnect.

Fig 2: Disconnecting Damper

Courtesy of BMW OF NORTH AMERICA, INC.
