51 16 368 Replacing right glove box with housing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary work:

Modify GLOVE BOX COVER including damper

Release screws (2) of cover panel (1).

Tightening torque 51 16 15AZ .

Remove cover panel (1).

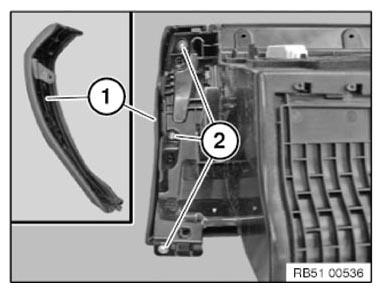

Fig 1: Identifying Screws Of Cover Panel

G10062717

Courtesy of BMW OF NORTH AMERICA, INC.

Remove GLOVE BOX LIGHT (1).

Unlock fuse carrier cover (2) and remove.

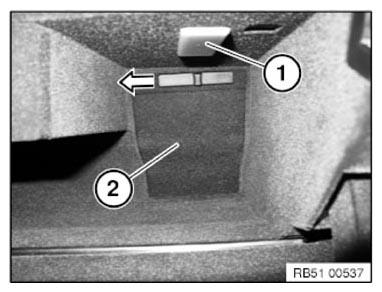

Fig 2: Removing Fuse Carrier Cover

G10062718

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out left and right protective caps (1) from storage compartment (2) using special tool 00 9 327 and remove.

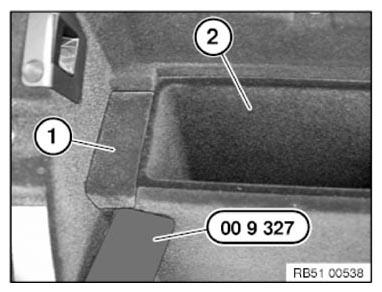

Fig 3: Removing Protective Caps From Storage Compartment Using Special Tool (00 9 327)

G10062719

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on storage compartment (2).

Tightening torque 51 16 16AZ .

Pull out storage compartment (2) toward the front and set aside.

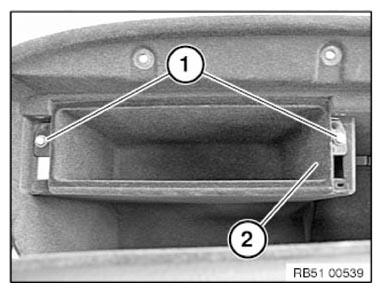

Fig 4: Identifying Storage Compartment And Screws

G10062720

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip left and right snap-in sockets (1) and slip out of glove box housing (2).

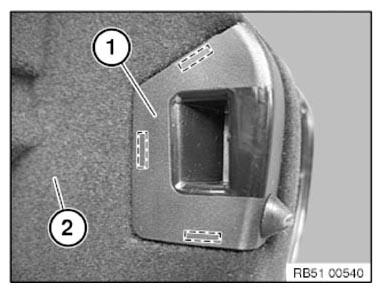

Fig 5: Locating Clips Of Snap-In Socket

G10062721
